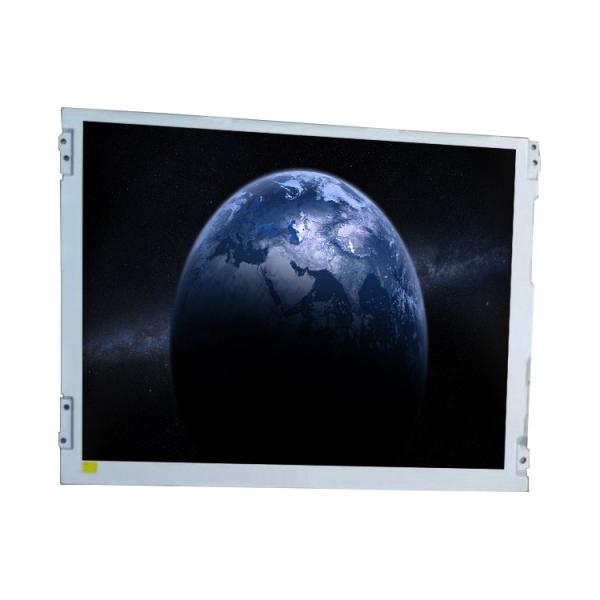

Original BOE 12.1 Inch Medical LCD Panel 800 * 600 Resolution
Original BOE 12.1-inch LCD screen ET121S0M-N14 800*600 Resolution LCD Panel
ET121S0M-N14 Product details :
| BOE LCD Screen ET121S0M-N14 |
| Brand | BOE |
| Model P/N | ET121S0M-N14 |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 82PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 246(W)×184.5(H) mm |
| Bezel Opening | 249.05(W)×188.30(H) mm |
| Outline Dim. | 279(H)×209(V) ×9.6(D) mm |
| Treatment | Antiglare (Haze 25%) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | 12 o'clock |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.7M 55% NTSC |
| Light Source | WLED , 30K hours , With LED Driver |
| Weight | 630g (Max.) |
| Designed For | Industrial / Medical Imaging |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Original BOE 12.1-inch LCD screen ET121S0M-N14 800 * 600 Resolution LCD Panel |
ET121S0M-N14 Contact us:
If you have any questions,you are welcome to contact our customer service staffs by email. We strive to answer all questions and resolve any problems as quickly as possible.
ET121S0M-N14 Business Hours:
(Beijing Time)Mon-Sat:10:00-18:00(except most national holiday)
ET121S0M-N14 Shipping and Package :
ET121S0M-N14 Delivery:
We can send out the items within 7 working days after payment confirmation.
The shipping way depends on the shipping cost which you choose, so please choose a proper shipping way according to your own situation.
If your place are located in a remote area, it may cost some extra charges, and we would let you know if the shipping cost is changed.
ET121S0M-N14 Return value:
1,lf returned,the full refund will be made State of health.
2,Commodities that are damaged or missing components will not be renewedFundable.
ET121S0M-N14 FAQ:
Q: Can you give me a discount if I need a large quantity of ET121S0M-N14 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of ET121S0M-N14 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods ET121S0M-N14 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods ET121S0M-N14 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
