Brand Name : Kyocera
Model Number : KCG057QV1DB-G660
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : KCG057QV1DB-G660
Diagonal Size : 5.7"
Panel Type : CSTN-LCD, LCM
Resolution : 320(RGB)×240, QVGA 70PPI
Pixel Format : RGB Vertical Stripe
Active Area : 115.2(W)×86.4(H) mm
Contrast Ratio : 60:1 (Typ.) (TM)
Used for : Industrial
KCG057QV1DB-G660 5.7 inch 75Hz 320*240 LCD Screen Module
KCG057QV1DB-G660 LCD Panel Product details :
Brand | Kyocera |
Model P/N | KCG057QV1DB-G660 |
Diagonal Size | 5.7" |
Panel Type | CSTN-LCD, LCM |
Resolution | 320(RGB)×240, QVGA 70PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 115.2(W)×86.4(H) mm |
Bezel Opening | 119.4(W)×90.6(H) mm |
Outline Size | 144(W)×104.8(H)×13.2(D) mm |
Surface | - |
Brightness | - |
Contrast Ratio | 60:1 (Typ.) (TM) |
Viewing Angle | 50/50/20/35 (Typ.)(CR≥2) |
Display Mode | STN, Normally Black, Transmissive |
Best View on | - |
Response Time | 180/170 (Typ.)(Tr/Td) |
Display Colors | Color |
Lamp Type | 1 pcs CCFL |
Frequency | 75Hz |
Touch Screen | Without |
Panel Weight | - |
Application | Industrial |
Signal Interface | Parallel Data (1ch, 8-bit), 20 pinsConnector |
KCG057QV1DB-G660 5.7 inch 75Hz 320*240 LCD Screen Module |
KCG057QV1DB-G660 LCD Panel Shipping and Package :
KCG057QV1DB-G660 LCD Panel FAQ :
Q: Do you accept the KCG057QV1DB-G660 sample order?
A: Yes , sample order is welcome.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How to order if I don’t know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .
![]() |

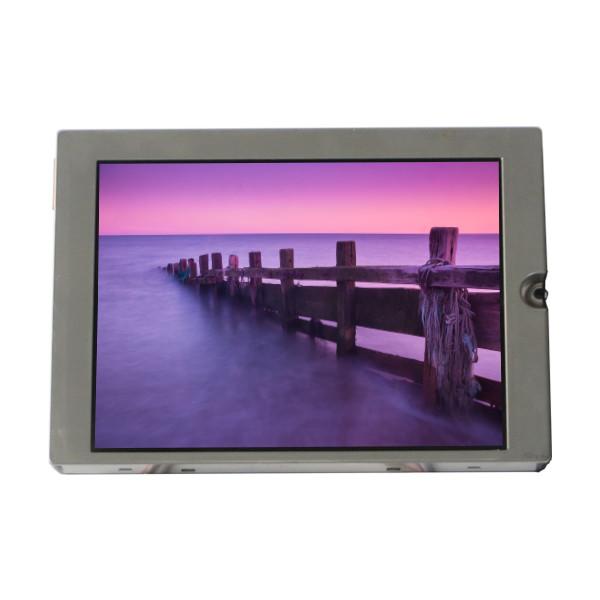

KCG057QV1DB-G660 5.7 inch 75Hz 320*240 LCD Screen Module Images |
