Brand Name : AUO
Model Number : C100HAT01.0
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : C100HAT01.0
Diagonal Size : 10.0"
Panel Type : a-Si TFT-LCD, LCM
Resolution : 1560(RGB)×700 171PPI
Pixel Format : RGB Vertical Stripe
Active Area : 231.66(W)×103.95(H) mm
Work Mode : AHVA, Normally Black, Transmissive
Lamp Type : WLED [3 strings × 2CN] , 10K hours , W/O Driver
Best View on : Symmetry
Designed For : Outdoor High Brightness、Automotive Display
C100HAT01.0 10.0 inch 1560*700 LCD Display Module for car
C100HAT01.0 LCD Panel Product details :
Brand | AUO |
Model P/N | C100HAT01.0 |
Diagonal Size | 10.0" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1560(RGB)×700 171PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 231.66(W)×103.95(H) mm |
Bezel Opening | - |
Outline Dim. | 259.36(W)×131.32(H)×12.78(D) mm |
Luminance | 940 cd/m² (Min.) |
View Direction | Symmetry |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
Support Color | 16.7M 83% DCI-P3 |
Weight | 375±38g |
Frame Rate | 60Hz |
Treatment | Antiglare, Reflection 6.0% (Max.) |
Contrast Ratio | 1000:1 (Typ.) (TM) |
Response Time | 30 (Max.)(Tr+Td) |
Operating Mode | AHVA, Normally Black, Transmissive |
Light Source | WLED [3 strings × 2CN] , 10K hours , W/O Driver |
Designed For | Outdoor High Brightness,Automotive Display |
Touch Panel | PCAP |
Interface Type | LVDS (2 ch, 8-bit)60 pins Connector |
Power Supply | 3.3/13.5/18/-8V (Typ.)(VDD/AVDD/VGH/VGL) |
Environment | Operating Temperature: -30 ~ 85 °C; Storage Temperature: -40 ~ 95 °C; Vibration Level: 2.9G (28.4 m/s²) |
C100HAT01.0 LCD Panel Shipping and Package :
C100HAT01.0 LCD Panel FAQ :
Q: Can You declare my order of C100HAT01.0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: If I place order now,when will you ship the goods of C100HAT01.0 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of C100HAT01.0 via credit card ?
A:Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
![]() |

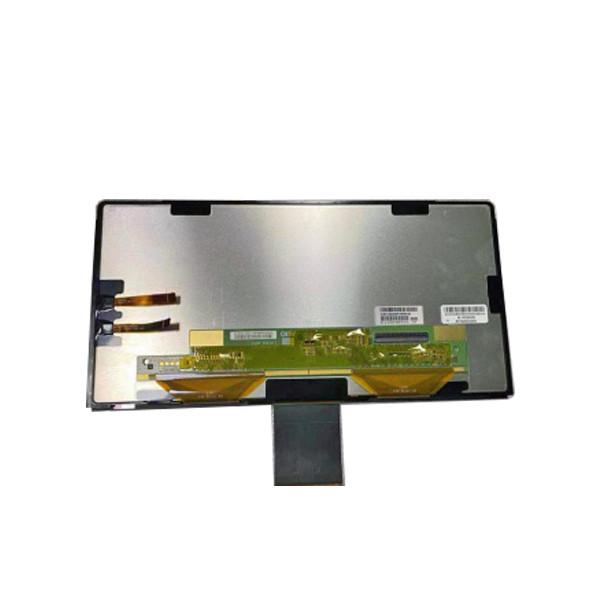

C100HAT01.0 10.0 inch 1560*700 LCD Display Module for car Images |
