Brand Name : Sharp
Model Number : LK695D3LA58
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : LK695D3LA58
Diagonal Size : 70"
Panel Type : a-Si TFT-LCD, LCM
Resolution : 1920(RGBY)×1080, FHD 31PPI
Pixel Format : RGB Vertical Stripe
Active Area : 1538.88(W)×865.62(H) mm
Application : Digital Signage
Touchscreen : Without
1920*1080 70 inch LK695D3LA58 LCD screen for Digital Signage
LK695D3LA58 LCD Panel Product details :
Brand | Sharp |
Model P/N | LK695D3LA58 |
Diagonal Size | 70" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1080, FHD 31PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 1538.88(W)×865.62(H) mm |
Bezel Opening | 1544.0(W)×876.8(H) mm |
Outline(mm) | 1566(W)×901.8(H)×31.6(D) |
Luminance | 700 (Typ.)(cd/m²) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
Good View at | Symmetry |
Color Depth | 16.7M 76% NTSC |
Mass | 26.0±1.5Kgs |
Refresh Rate | 60Hz |
Treatment | Antiglare, Hard coating (2H) |
Contrast Ratio | 5000 : 1 (Typ.) (TM) |
Work Mode | ASV, Normally Black, Transmissive |
Response | 8 (Typ.)(G to G) ms |
Backlight | WLED , 50K hours , With LED Driver |
Used for | Digital Signage |
Touchscreen | Without |
Signal Type | LVDS (2 ch, 8-bit), 92 pins Connector |
Voltage Supply | 12.0V (Typ.) |
Max. Ratings | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
1920*1080 70 inch LK695D3LA58 LCD screen for Digital Signage |
LK695D3LA58 LCD Panel Shipping and Package :
Q: Do you accept sample orders for LK695D3LA58 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of LK695D3LA58 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for LK695D3LA58 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of LK695D3LA58 at a very low value ?
A: Yes , we can . pls inform us before shipping .
![]() |

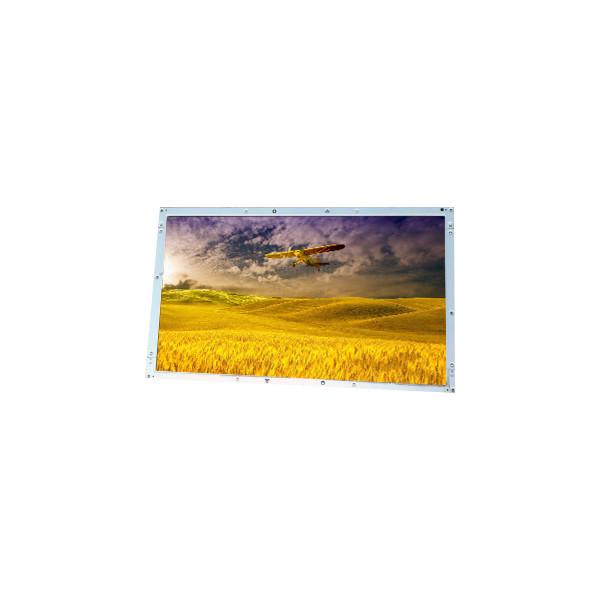

1920*1080 70 inch LK695D3LA58 LCD screen for Digital Signage Images |
