Brand Name : Sharp
Model Number : LM6Q401
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : LM6Q401
Diagonal Size : 5.5"
Panel Type : CSTN-LCD, LCM
Resolution : 320(RGB)×240, QVGA 73PPI
Pixel Format : RGB Vertical Stripe
Active Area : 111.3(W)×83.5(H) mm
Application : Industrial
Touchscreen : Without
5.5 inch LM6Q401 320*240 LCD screen LCD MODULE
LM6Q401 LCD Panel Product details :
Brand | Sharp |
Model P/N | LM6Q401 |
Diagonal Size | 5.5" |
Panel Type | CSTN-LCD, LCM |
Resolution | 320(RGB)×240, QVGA 73PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 111.3(W)×83.5(H) mm |
Bezel Opening | 116.0(W)×88.0(H) mm |
Outline(mm) | 146(W)×106.6(H) |
Luminance | 200 (Typ.)(cd/m²) |
Viewing Angle | - |
Good View at | - |
Color Depth | 4096 |
Mass | 370g (Typ.) |
Refresh Rate | - |
Treatment | - |
Contrast Ratio | 30 : 1 (Typ.) (TM) |
Work Mode | STN, Normally Black, Transmissive |
Response | 80 (Typ.)(Tr+Td) ms |
Backlight | 1 pcs CCFL |
Used for | Industrial |
Touchscreen | Without |
Signal Type | Analog |
Voltage Supply | 12.0V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 65 °C Operating Temp.: 0 ~ 50 °C |
5.5 inch LM6Q401 320*240 LCD screen LCD MODULE |
LM6Q401 LCD Panel Shipping and Package :
Q: Can I pay my order of LM6Q401 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of LM6Q401 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of LM6Q401 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of LM6Q401 ?
A: Of course!sample order is welcome !
![]() |

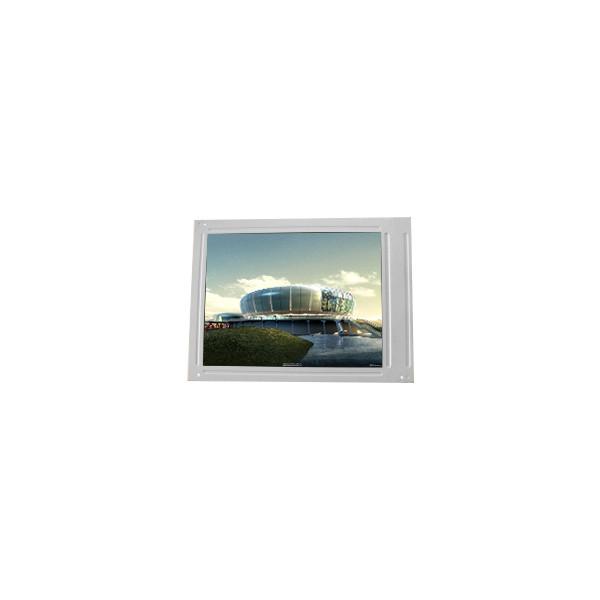

5.5 inch LM6Q401 320*240 LCD screen LCD MODULE Images |
