Brand Name : BOE
Model Number : DV550QUB-N20
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : DV550QUB-N20
Diagonal Size : 55"
Panel Type : a-Si TFT-LCD, CELL, FOB
Resolution : 3840(RGB)×2160, UHD 80PPI
Pixel Format : RGB Vertical Stripe
Active Area : 1209.6(W)×680.4(H) mm
Used for : Digital Signage
Touch Screen : Without

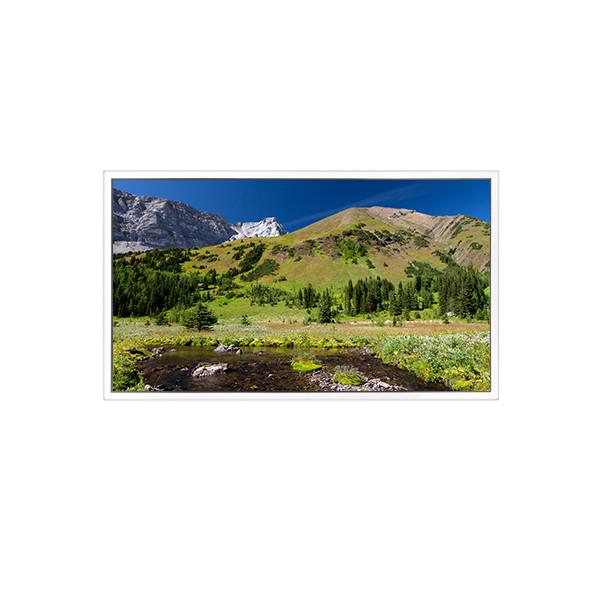

DV550QUB-N20 3840*2160 55 inch LCD Screen FOR Digital Signage
DV550QUB-N20 LCD Panel Product details :
Brand | BOE |
Model P/N | DV550QUB-N20 |
Diagonal Size | 55" |
Panel Type | a-Si TFT-LCD, CELL, FOB |
Resolution | 3840(RGB)×2160, UHD 80PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 1209.6(W)×680.4(H) mm |
Outline Dim. | 1221.4(H)×694.8(V)×1.34(D) mm |
Treatment | Antiglare (Haze 25%), Hard coating (3H) |
Luminance | 0 cd/m² |
Contrast Ratio | 1200:1 (Typ.) (TM) |
View Direction | Symmetry |
Response Time | 8 (Typ.)(G to G) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
Operating Mode | ADS, Normally Black, Transmissive |
Plate Thickness | 0.50+0.50 mm |
Transmittance | 5.4% (Typ.)(with Polarizer) |
Support Color | 1.07B 73%NTSC |
Light Source | No B/L |
Weight | 2.60Kgs (Typ.) |
Designed For | Digital Signage |
Frame Rate | 60Hz |
Touch Panel | Without |
D-IC Detail | COF Built-in 6 source chips |
Interface Type | V-by-One 8 lane, 51 pinsConnector |
Power Supply | 12V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
DV550QUB-N20 3840*2160 55 inch LCD Screen FOR Digital Signage |
DV550QUB-N20 LCD Panel Shipping and Package :
DV550QUB-N20 LCD Panel FAQ :
Q: When will my order DV550QUB-N20 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel DV550QUB-N20 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
![]() |
