Brand Name : BOE
Model Number : PT156WHM-N44
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : PT156WHM-N44
Diagonal Size : 15.6"
Panel Type : a-Si TFT-LCD, LCM
Resolution : 1366(RGB)×768, WXGA 100PPI
Pixel Format : RGB Vertical Stripe
Active Area : 344.232(W)×193.536(H) mm
Frame Rate : 60Hz
Designed For : Industrial
PT156WHM-N44 15.6 inch 1366*768 eDP 30 pins LCD Screen for Industrial
PT156WHM-N44 LCD Panel Product details :
BOE LCD SCREEN | |
manufacturer | BOE |
Model P/N | PT156WHM-N44 |
Diagonal Size | 15.6" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1366(RGB)×768, WXGA 100PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 344.232(W)×193.536(H) mm |
Bezel Opening | - |
Outline(mm) | 350.68(W)×216.25(H)×3.2(D) |
Treatment | Antiglare |
Luminance | 350 (Typ.)(cd/m²) |
Contrast Ratio | 500 : 1 (Typ.) (TM) |
Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) |
Work Mode | TN, Normally White, Transmissive |
Good View at | 6 o'clock |
Response | 12 (Typ.)(Tr+Td) ms |
Color Depth | 262K 45% NTSC |
Backlight | WLED , 15K hours , With LED Driver |
Mass | TBD |
Used for | Industrial |
Refresh Rate | 60Hz |
Signal Type | eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
PT156WHM-N44 15.6 inch 1366*768 eDP 30 pins LCD Screen for Industrial |
PT156WHM-N44 LCD Panel Shipping and Package :
PT156WHM-N44 LCD Panel FAQ :
Q: How long will I receive my goods of lcd PT156WHM-N44?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: When will my order PT156WHM-N44 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
![]() |

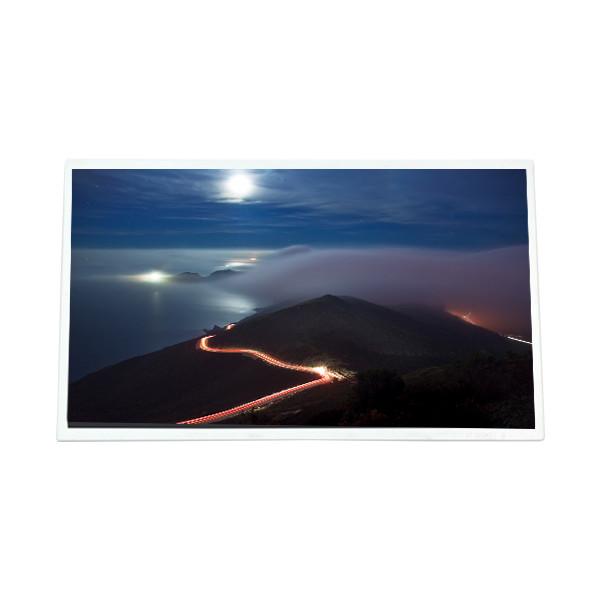

PT156WHM-N44 15.6 inch 1366*768 eDP 30 pins LCD Screen for Industrial Images |
