Brand Name : Sharp
Model Number : LQ170M1LA04
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : LQ170M1LA04
Diagonal Size : 17.0"
Panel Type : a-Si TFT-LCD, LCM
Resolution : 1920(RGB)×1200, WUXGA 133PPI
Pixel Format : RGB Vertical Stripe
Active Area : 365.76(W)×228.6(H) mm
Designed For : Laptop
Frame Rate : 60Hz
LQ170M1LA04 17.0 inch 1920*1200 340 cd/m2 LCD Module for Laptop
LQ170M1LA04 LCD Panel Product details :
Brand | Sharp |
Model P/N | LQ170M1LA04 |
Diagonal Size | 17.0" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1200, WUXGA 133PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 365.76(W)×228.6(H) mm |
Bezel Opening | 372.4(W)×232.2(H) mm |
Outline Size | 382.2(W)×246.8(H)×10.3(D) mm |
Surface | Glare (Haze 0%), Hard coating (2H), Antireflection |
Brightness | 340 cd/m² (Typ.) |
Contrast Ratio | 450:1 (Typ.) (TM) |
Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive |
Best View on | - |
Response Time | 30 (Typ.)(Tr+Td) |
Display Colors | 262K 49%NTSC |
Lamp Type | 2 pcsCCFL, 10K hours, Without Driver |
Frequency | 60Hz |
Touch Screen | Without |
Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
Application | Laptop |
Signal Interface | LVDS (2 ch, 6-bit), 30 pins Connector |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temp.: 0 ~ 45 °C ;Storage Temp.: -25 ~ 60 °C |
LQ170M1LA04 17.0 inch 1920*1200 340 cd/m2 LCD Module for Laptop |
LQ170M1LA04 LCD Panel Shipping and Package :
LQ170M1LA04 LCD Panel FAQ :
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long is the warranty of LQ170M1LA04?
A: NEW Product warranty is 90 days.
Q: How to order lcd panel LQ170M1LA04?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
![]() |

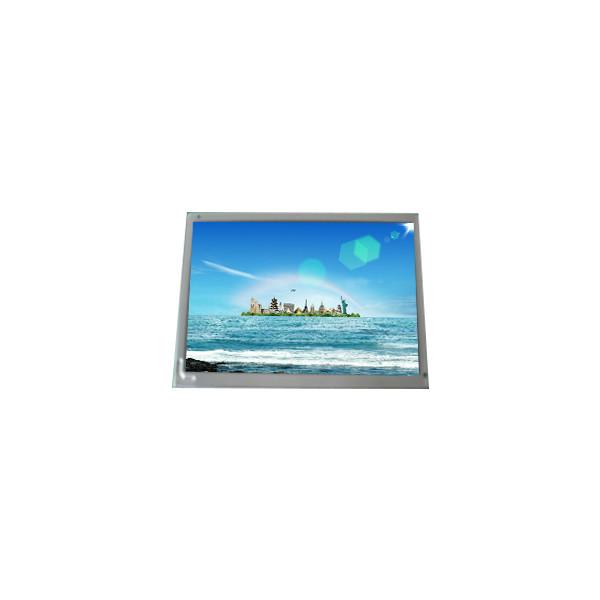

LQ170M1LA04 17.0 inch 1920*1200 340 cd/m2 LCD Module for Laptop Images |
