5.0 inch TM050JVZG28 720*1280 LCD Screen Display

  • 1
  • 2

Brand Name : TIANMA

Model Number : TM050JVZG28

Place of Origin : China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : T/T, Western Union, D/P

Supply Ability : 100000 Unit/Units per Month

Delivery Time : 7 Days

Packaging Details : Original packaging/conventional packaging box

Model Name : TM050JVZG28

Diagonal Size : 5.0"

Panel Type : a-Si TFT-LCD, Assembly

Resolution : 720(RGB)×1280, WXGA 294PPI

Pixel Format : RGB Vertical Stripe

Active Area : 62.1(W)×110.4(H) mm

Touch Panel : PCAP, I²C

Designed For : Mobile Phone

Response Time : 35 (Typ.)(Tr+Td)

Viewing Angle : 80/80/80/80 (Typ.)(CR≥10)

Contact Now

5.0 inch TM050JVZG28 720*1280 LCD Screen Display

TM050JVZG28 LCD Panel Product details :

Brand TIANMA
Model P/N TM050JVZG28
Diagonal Size 5.0"
Panel Type a-Si TFT-LCD, Assembly
Resolution 720(RGB)×1280, WXGA 294PPI
Pixel Format RGB Vertical Stripe
Active Area 62.1(W)×110.4(H) mm
Bezel Opening -
Outline Dim. 71.1(H)×132.85(V)×3.73(D) mm
Treatment -
Luminance 300 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
View Direction Symmetry
Response Time 35 (Typ.)(Tr+Td)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10)
Operating Mode -
Support Color 16.7M 70%NTSC
Light Source WLED [6S2P], 20K hours, W/O Driver
Weight TBD
Designed For Mobile Phone
Frame Rate -
Touch Panel PCAP, I²C
Interface Type MIPI (4 data lanes), 31 pinsFPC
Power Supply 1.8/2.8V (Typ.)(IOVCC/VCI)
Environment Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
TM050JVZG28 LCD Screen Regarding Us:
For over a decade, we have been a trusted name in the Chinese market, specializing in the sale of high-quality LCD screens. Our extensive experience and dedication have allowed us to cater to a diverse range of industries, particularly focusing on industrial and medical applications. Whether you need compact screens as small as 0.5 inches or larger displays up to 88 inches, we have a broad selection to meet your requirements.
Our Product Range
We offer a comprehensive range of LCD screens from some of the most renowned and reliable brands in the industry. Our inventory includes:
Hitachi: Known for their durable and high-performance displays.
Samsung: Leading the market with cutting-edge technology and innovation.
Sharp: Renowned for their crystal-clear display quality and reliability.
NEC: A preferred choice for professional-grade monitors and displays.
Tianma: Recognized for their advanced industrial display solutions.
AUO: Providing a wide range of sizes and applications.
Fujitsu: Offering robust and efficient LCD solutions.
Kyocera: Known for their long-lasting and high-quality displays.
Technical Support
Beyond just providing screens, we also offer partial technical support to ensure that you can make the most out of your purchase. Our technical team is always ready to assist you with installation, troubleshooting, and any other technical queries you might have. We are committed to ensuring that our customers not only receive top-tier products but also the support they need to operate them efficiently.

TM050JVZG28 LCD Panel Shipping and Package :

5.0 inch TM050JVZG28 720*1280 LCD Screen Display

TM050JVZG28 LCD Screen Protective Packaging:

At our company, we understand the importance of ensuring that your purchase arrives in the best possible condition. That's why we take protective packaging very seriously. When you order from us, you can rest assured that your item will be thoroughly protected with a plastic film placed on the screen.

But our commitment to protecting your purchase doesn't end there. We also employ secure packing methods to further minimize the risk of damage during transit. We understand that it can be frustrating to receive an item that has been damaged in shipping, and we want to prevent that from happening at all costs.

We believe that our customers deserve the best possible shopping experience, and that includes receiving their orders in pristine condition. With our protective packaging measures, you can be sure that your purchase will arrive ready to use and enjoy.

Thank you for choosing our company for your shopping needs, and rest assured that we will do everything in our power to deliver your order safely and securely.

TM050JVZG28 LCD Screen Returns Policy :
30-Day Money Back Guarantee
If you are not entirely satisfied with your LCD screen purchase, you can return it within 30 days of the purchase date for a full refund.
Return Process
Contact Us: To initiate a return, please contact our customer service team. Provide your purchasing information, including the order number and any other details that were sent to you at the time of purchase. This information helps us process your return efficiently.
Return Period: Ensure that your return is made within 30 days from the date of purchase. Returns made after this period may not be eligible for a refund.
Important Notes
The returned item must be in its original condition, including all accessories and packaging materials.
We recommend using a trackable shipping method for your return to ensure that it reaches us safely.
Once we receive and inspect the returned item, we will process your refund. Please allow a few business days for the refund to appear in your account.

TM050JVZG28 LCD Panel FAQ :

Q: If I place order now,when will you ship the goods TM050JVZG28 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can you give me a discount if I need a large quantity TM050JVZG28 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How long will I receive my goods TM050JVZG28 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment TM050JVZG28 ?

A: We accept T/T , Paypal , western union .


 5.0 inch TM050JVZG28 720*1280 LCD Screen Display Manufactures

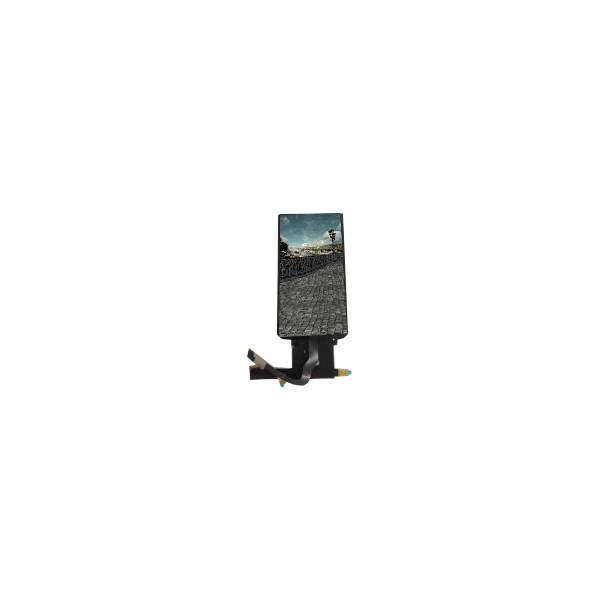

5.0 inch TM050JVZG28 720*1280 LCD Screen Display Images
